Attachment sweeper Tuchel-Sweep PROFI 660

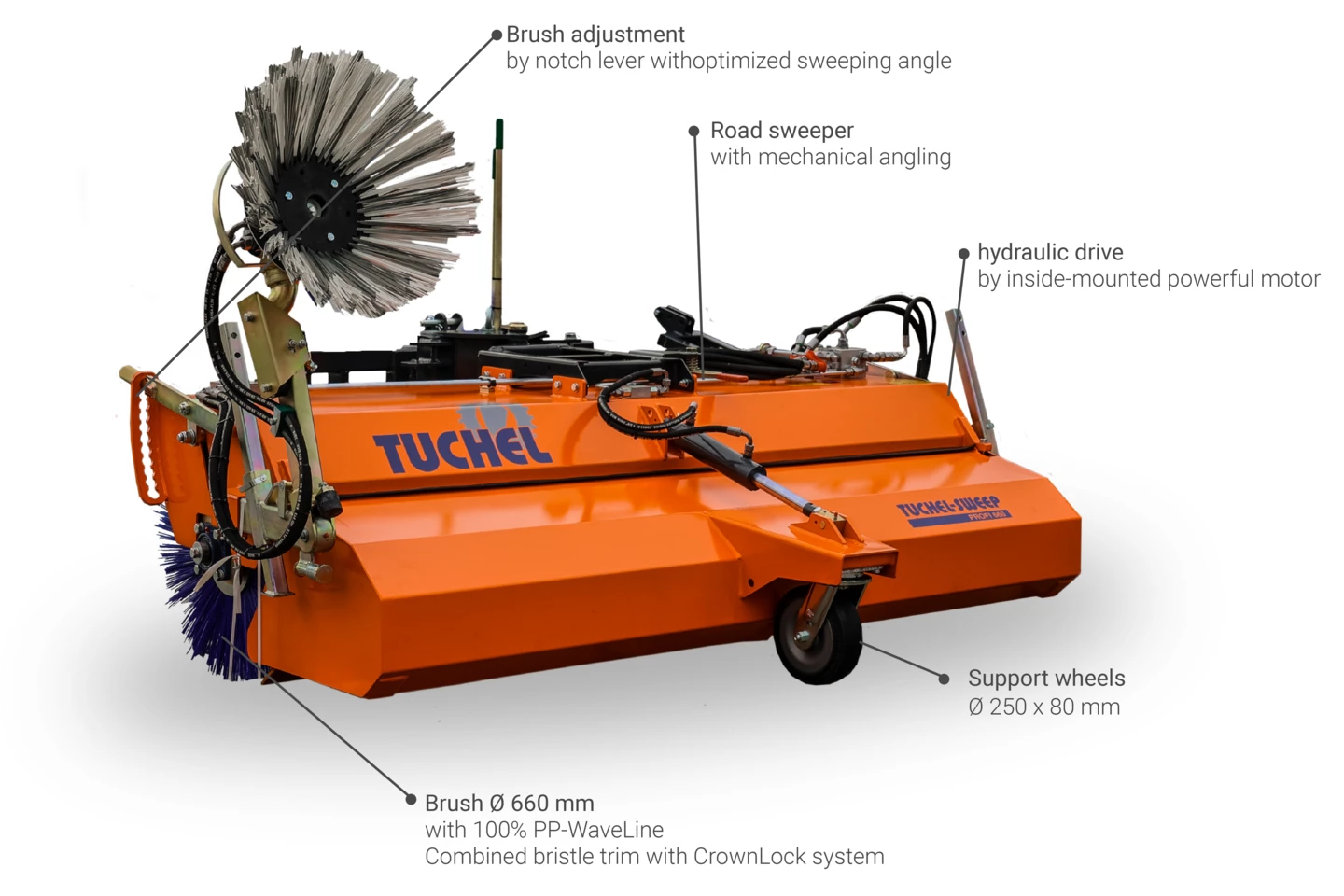

The front road sweeper PROFI 660 is developed for wheel loaders, tractors, telescopic handler, trucks, Unimog vehicles and forklifts. Due to its robust machine frame and high-quality hydraulic components, the Profi 660 is ideally suited for heavy-duty application,
The angling is mechanically adjusted as standard. The hydraulic drive is provided by a powerful internal gerotor motor. The integrated brush overrun monitoring protects the high-quality hydraulic components.
Ø660 mm brush rings. The 100 % PP WaveLine combined bristle trim including CrownLock system with sweep wedge optimisation is height-adjusted through the proven TUCHEL notch lever system and guarantees a long service life with even wear. Optimum ground guidance is ensured by the specially developed 3D levelling system.
Data & Info
- A-frame
- Three-point linkage
- Fork-tines attachment
- Wheel loader and telescopic loader attachment
- Attachment plate fitting to Unimog vehicles DIN 76060
- Collecting container with integrated 3rd support wheel, with hydraulic emptying, PU-lip and high-filling flap. The free-sweeping mode enables flexible selection between sweeping with or without dirt collecting container. The dirt collecting container does not need to be dismounted. The PU-lip prevents light debris under the collecting container from being swept in front of the vehicle. The high-filling flap in the dirt collecting container provides for approx. 30 % more filling volume.
- 100 % PP brush rings in honeycomb shape, especially dense full-body brush, long service life, particularly suitable for coarse dirt
- 100% snowline brush rings in honeycomb shape (winter service)
- 3rd support wheel for free-sweeping carrier-vehicle
- hydraulic angling
- hydraulically driven side brush Ø 600 mm for sweeping close to the edge (with water spray unit, if required)
- Side brush hydraulic opening
- Water-spray unit for dust binding including water pump with or without 200 l water tank
- Flow control valve for infinitely variable speed control with pressure relief valve (from 160 bar)
- CSE tyres Ø 306 x 116 mm
- Brush comb to remove light debris from the brush (pin length 3.5 cm)
- Straight scraper with hydraulic operation
- Limiting lights (LED) acc. to StVZO (road traffic licensing authority) when driving in road traffic
- Signal flag holder und signal flags
- Special paint according to RAL (standard RAL 2004)
| 200 cm | 230 cm | 260 cm | 280 cm | |
| Working width (straight/angled) [cm] | 200/188 | 230/216 | 260/244 | 280/259 |
| Total width [cm] | 223 | 253 | 283 | 299 |
| Weight free-sweeping (with quick-change unit) [kg] | 475 | 498 | 521 | 534 |
| Weight including collecting container [kg] | 609 | 643 | 677 | 695 |
| Volume collecting container [l] | 315 | 361 | 407 | 431 |
| required oil flow rate (at 160 bar) [l] | 40 | 40 | 50 | 50 |
