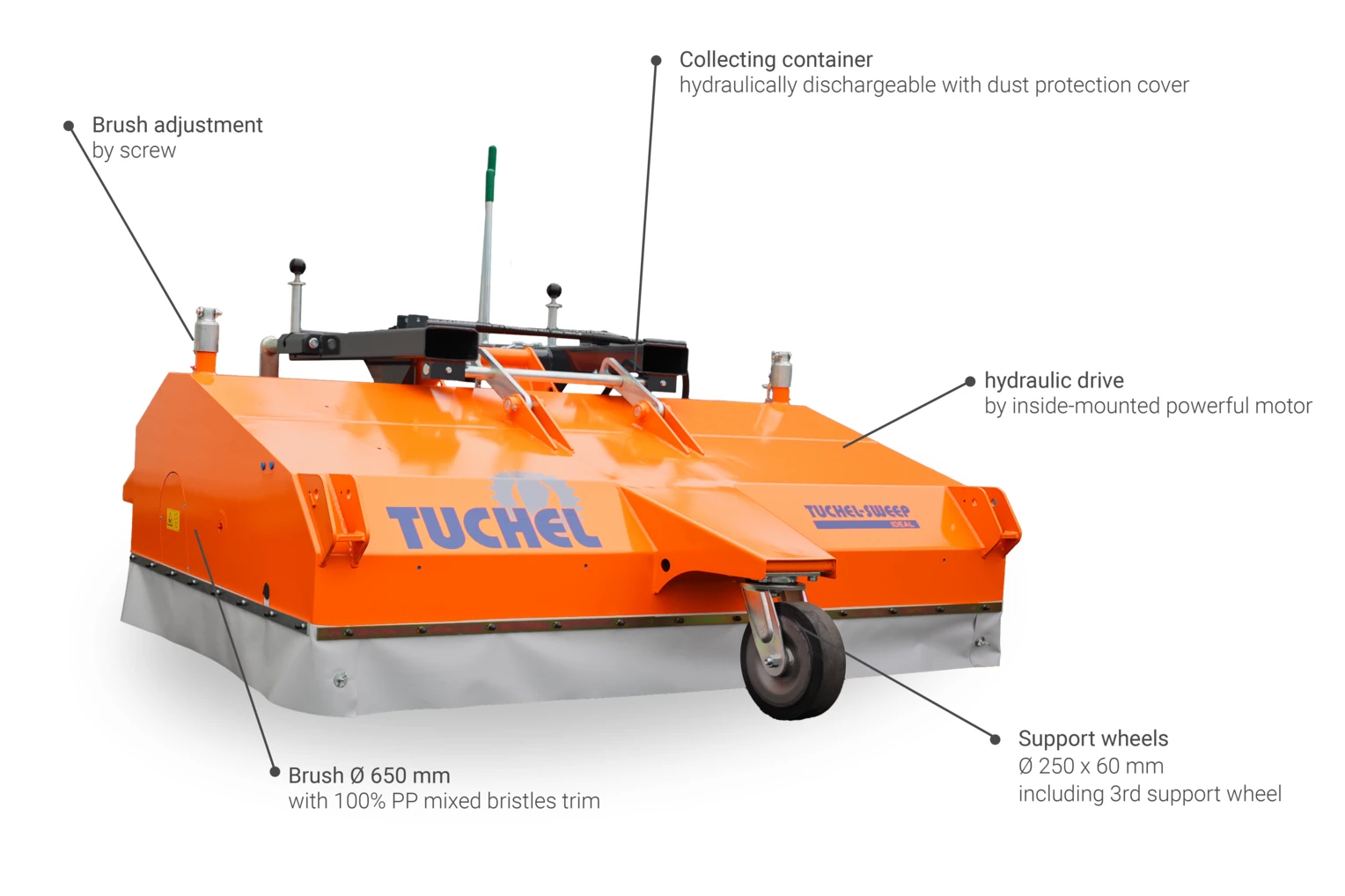

Attachment sweeper Tuchel-Sweep IDEAL 650
The IDEAL 650 front sweeper is specially designed for use in industry and on construction sites. The sweeper is driven by an inside-mounted powerful hydraulic motor with twin pressure relieving valve.
The brush made of 100 % PP mixed bristles trim can be ideally used indoor as well as outdoor. Here, in particular, the bristles are V-shaped to sweep up both solidified dirt and fine dust. The oscillating suspended brush adapts optimally to the ground and provides good dust encapsulation. This sweeper is ideally suited for cleaning halls and buildings.
In addition, the sweeper is equipped with an integrated hydraulically dischargeable collecting tank with high-filling flap and a dust cover.
Data & Info
- Fork-tines attachment
COMBI ATTACHMENT consisting of:
- Fork-tines attachment & wheel loader attachment
- Fork-tines attachment & three-point linkage
- hydraulically driven side brush for sweeping close to the edge (with water spray unit, if required)
- Water-spray system for dust binding including water pump with or without water tank (100 l or 200 l)
- Extra sturdy wheels we recommend for heavy-duty application.
- Flow control valve for infinitely variable speed control with pres- sure relief valve (> 90 l)
- Limiting lights (LED) acc. to StVZO (road traffic licensing authority) when driving in road traffic
- Signal flag holder und signal flags
- Special paint according to RAL (standard RAL 2004)
- Self-powered hydraulic system
| 130 cm | 150 cm | 180 cm | 210 cm | |
| Working width (straight) [cm] | 130 | 150 | 180 | 210 |
| Total width [cm] | 155 | 175 | 205 | 235 |
| Weight including collecting container [kg] | 455 | 497 | 516 | 556 |
| Volume collecting container [l] | 210 | 240 | 290 | 335 |
| required oil flow rate (at 160 bar) [l] | 25 | 25 | 25 | 30 |
