Attachment sweeper Tuchel-Sweep PLUS 590 Pro

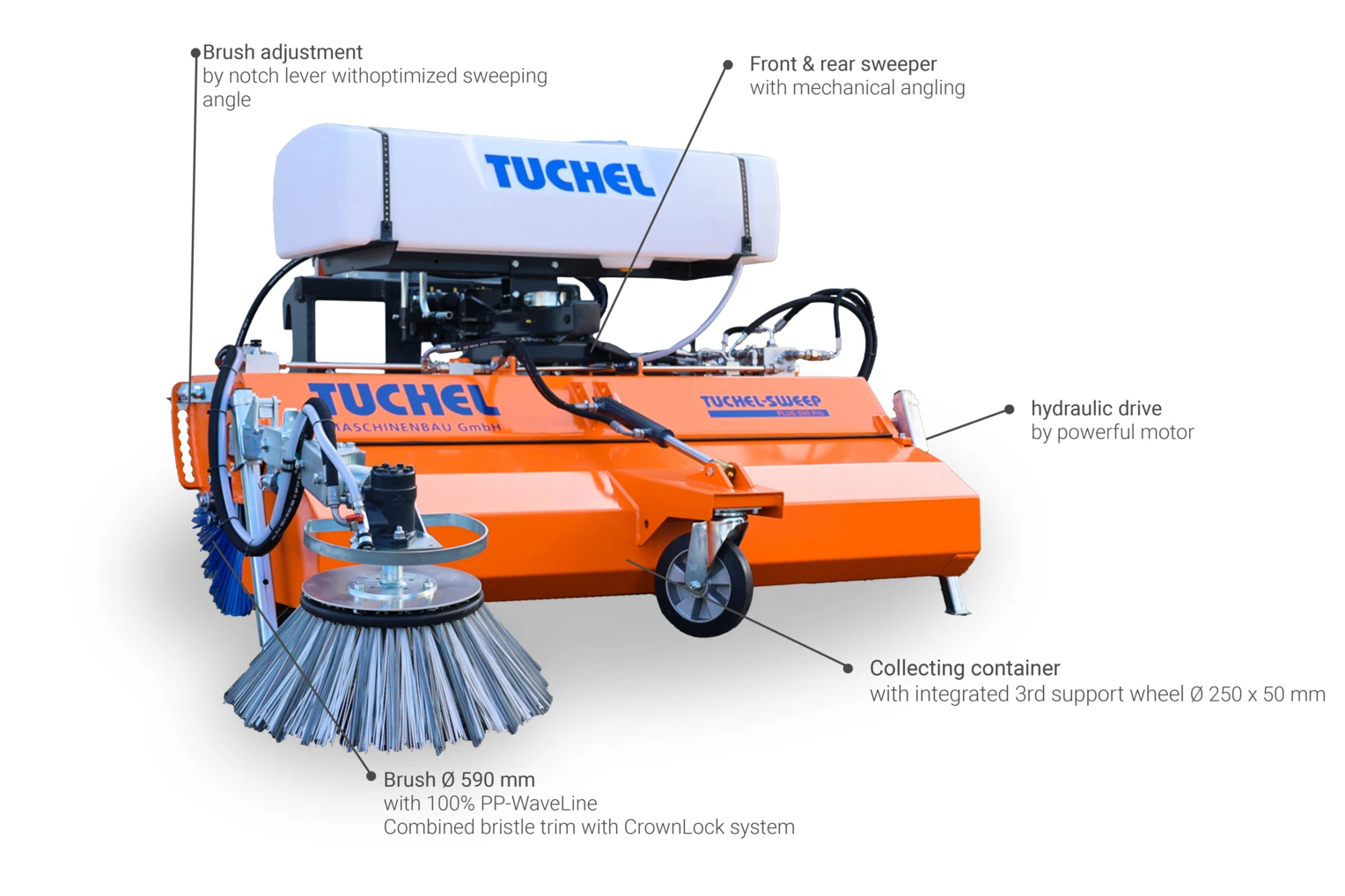

The Plus 590 Pro front and rear sweeper is a true all-rounder and suitable for almost any carrier vehicle.
The angling is mechanically adjusted as standard. The hydraulic drive is provided by a powerful gerotor motor. The integrated brush overrun monitoring protects the high-quality hydraulic components.
The brush rings have a diameter of 590 mm. The 100 % PP WaveLine combined bristle trim including CrownLock system with sweep wedge optimisation is height-adjusted through the proven TUCHEL notch lever system and guarantees a long service life with even wear.
Data & Info
- A-frame
- Three-point linkage
- Fork-tines attachment
- Yard loader attachment
- Wheel loader and telescopic loader attachment
- Municipal vehicle-type attachment
- Attachment plate fitting to Unimog vehicles DIN 76060
- Collecting container, with integrated 3rd support wheel, hydraulic emptying and PU-lip. The free-sweeping mode enables flexible selection between sweeping with or without dirt collecting container. The dirt collecting container does not need to be dismounted. The PU-lip prevents light debris under the collecting container from being swept in front of the vehicle.
- High-filling flap in the dirt collecting container, provides for approx. 30 % more Filling volume
- 3. Support wheel Ø 250 X 50 mm for free-sweeping carrier-vehicle
- Inside-mounted, protected gerotor motor
- 100 % PP brush rings in honeycomb shape, especially dense full-body brush, long service life, particularly suitable for coarse dirt
- 100 % snowline brush rings in honeycomb shape (winter service)
- hydraulic angling
- Side levelling for lateral compensation
- hydraulically driven side brush Ø 600 mm for sweeping close to the edge (with water-spraying unit, if required)
- Water-spray system for dust binding including water pump with or without water tank (100 l or 200 l)
- Flow control valve for infinitely variable speed control with pressure relief valve (from 160 bar)
- Extra sturdy wheels Ø 250 x 80 mm, steel welded, for heavy duty (recommended from 260 cm)
- Brush comb to remove light debris from the brush (pin length 3.5 cm)
- Special paint according to RAL (standard RAL 2004)
| 135 cm | 150 cm | 180 cm | 200 cm | 230 cm | 260 cm | |
| Working width (straight/angled) [cm] | 135/127 | 150/141 | 180/169 | 200/188 | 230/211 | 260/244 |
| Total width (inside/outside mounted motor) [cm] | 168/156 | 183/171 | 213/201 | 233/221 | 263/251 | 293/281 |
| Weight free-sweeping (with quick-change unit) [kg] | 380 | 392 | 403 | 415 | 440 | 462 |
| Weight including collecting container [kg] | 460 | 472 | 498 | 520 | 552 | 580 |
| Volume collecting container [l] | 166 | 184 | 220 | 244 | 280 | 315 |
| required oil flow rate (at 160 bar) [l] | 30 | 30 | 30 | 40 | 40 | 50 |
